The Aviation Suite in the Tomorrow.io Platform offers a collection of layers, alerts, and tools designed specifically for aviation weather monitoring and operational safety.
By activating the plane icon on your map, you’ll unlock a range of aviation-specific layers and data tools. These features support dispatchers, pilots, ground operations, and meteorological teams in optimizing safety and efficiency.
Note: Several aviation features have dedicated articles for deeper explanation and configuration steps. This article provides a consolidated overview.
Feature Summary
| Feature | Description |
|---|---|

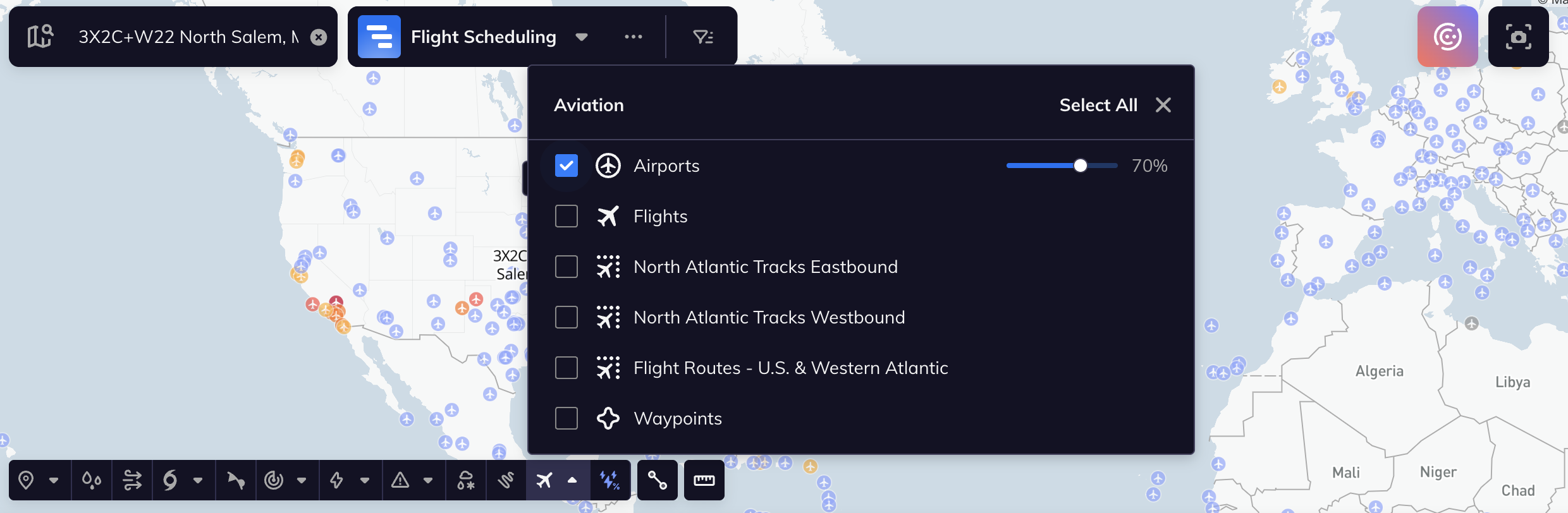

| Airports | Displays global airport locations. Click on an airport icon to view METAR and TAF weather reports. |
| Flight Schedule (Custom) | Airline-specific schedule display for partner integrations. Contact your Acount Team to enable. |
| Flight Routes – North Atlantic | Daily updated routes between Europe and North America. |
| Flight Routes – U.S. & Western Atlantic | Daily updated routes across the U.S. and Western Atlantic region. |
| Waypoints | Shows standard waypoints used in flight planning. |
| NAV Aids | Displays navigation aids like VORs and NDBs used in en-route navigation. |
| FIR Boundaries | Displays U.S. Flight Information Regions (FIRs). Additional regions may be added later. |
| AIRMETs (U.S. Only) | Shows AIRMETs for hazards such as turbulence and icing. Use the altitude slider to explore vertical levels. |
| G-AIRMETs | Graphical version of AIRMETs. |
| SIGMETs | Displays significant weather advisories like severe turbulence or volcanic ash. Altitude filtering available. |
| Custom SIGMETs | Internal operational alerts configured for your organization. Contact Support to enable. |
| Volcanic Ash | Real-time volcanic ash alerts from VAACs, including projected dispersion. |
| PIREPs | Displays pilot-submitted reports of observed conditions. |
| Winds | Visual wind barbs for analyzing speed and direction across altitudes. |
Additional Aviation Features
METAR/TAF Access and Usage
Tomorrow.io provides METAR and TAF data in several locations:

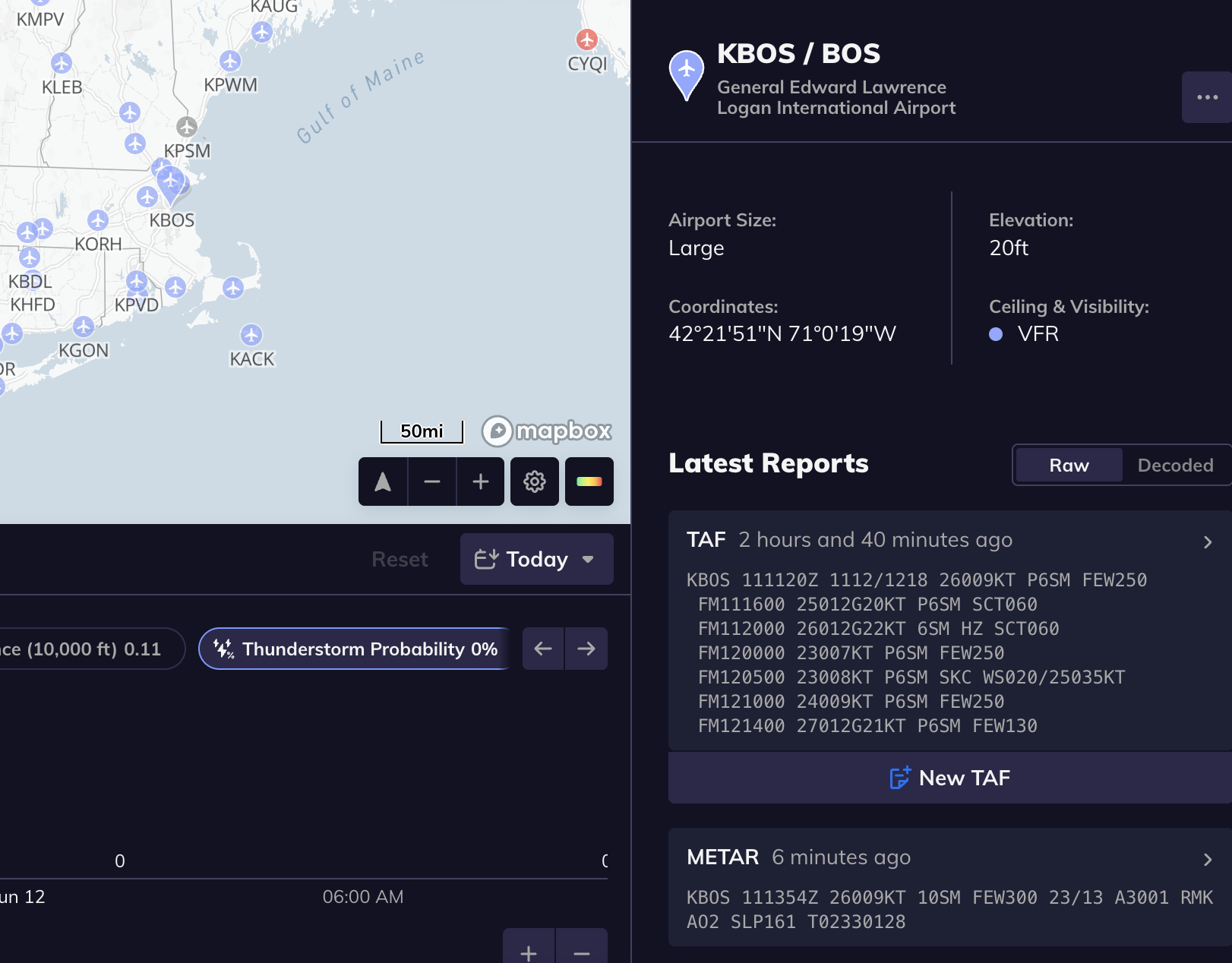

- Click on any airport icon to view the latest METAR and TAF reports directly in the map.

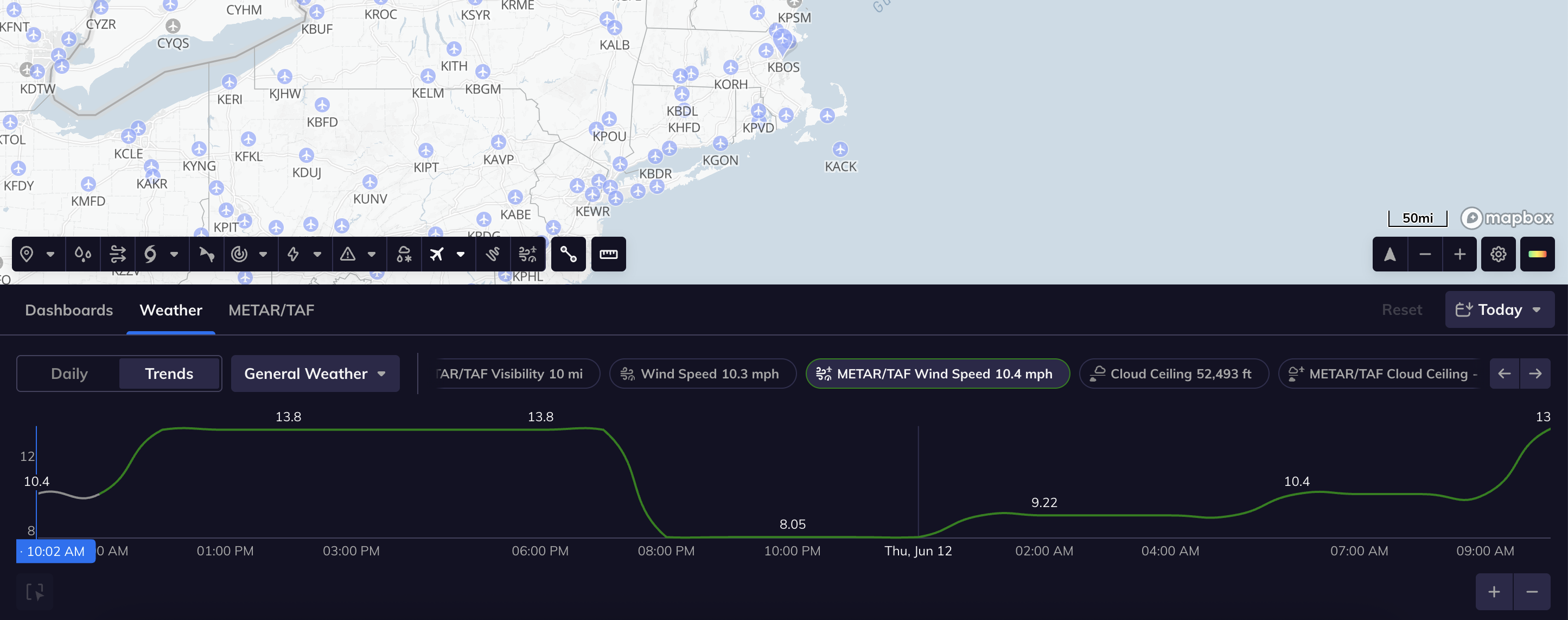

- Use METAR/TAF as a parameter in Trends to track changes at your key airports.

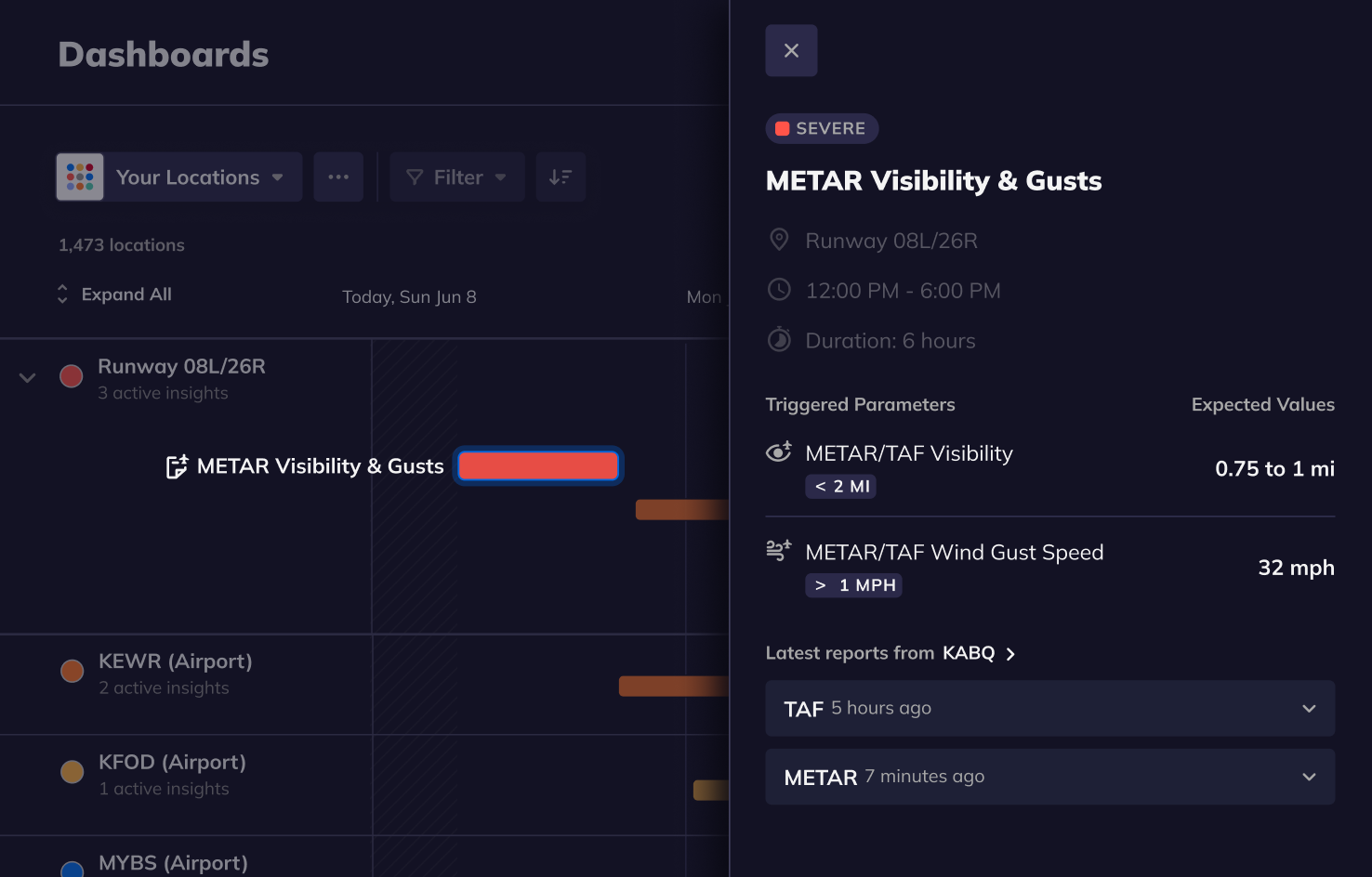

- Create Insights based on METAR or TAF to trigger alerts based on observed or forecast airport conditions.
💡 We recommend combining Tomorrow.io forecast data with METAR/TAF conditions in the same Insight. This ensures alerts are triggered by the most sensitive available source and include a message detailing which source initiated the Insight.
→ Read more in our guide to Insights
Aviation Weather Reports
Generate automatic weather summaries for monitored airport locations using Tomorrow.io's intelligence engine.
Use cases include dispatch, ATC briefings, and ramp operations.
- Include wind, ceiling, visibility, and precipitation.
- Schedule delivery via email or custom integrations.
- Customize thresholds per airport.
→ See detailed setup instructions
SIGMETs & Volcanic Ash Alerts
Enable these layers to visualize global aviation hazards.
- SIGMETs cover turbulence, icing, and tropical cyclone zones.
- Volcanic Ash alerts show recent eruption data and hazard zones from global VAAC centers.
- Altitude filtering is available via the left-side scroller.
→ See detailed setup instructions
Crosswind Monitors
Create custom Insights to alert based on crosswind or tailwind conditions:
- Supports runway-specific configurations.
- Includes gust thresholds and directionality filters.
- Useful for takeoff and landing alerts.
→ See detailed setup instructions
Surface Fronts
View dynamic frontal systems including:
- Cold, warm, stationary, and occluded fronts.
- Supports en-route weather planning and risk awareness.
→ See detailed setup instructions
Flight Schedules & Routes
Overlay flight schedule and routing data with live and forecast weather:
- Visualize planned flight paths alongside weather conditions.
- Monitor delays and hazards in real-time (available in select regions).
- U.S. and specific airline integration supported.
→ See detailed setup instructions
WAFS (World Area Forecast System)
Access upper-air aviation data, including:
- ICAO-compliant wind, temperature, and turbulence fields.
- Updated by WAFC London and WAFC Washington.
- Essential for international flight planning and trajectory analysis.
→ See detailed setup instructions
Volcanic Ash Forecasts
Dedicated layer for forecasted volcanic ash dispersal:
- Multi-altitude views with concentration levels.
- Supports rerouting and avoidance decisions.
→ See detailed setup instructions
Need Help?
If you have questions or need assistance, we're here to help.
Contact your Tomorrow.io Account Team for personalized support, or reach out to our support team anytime at support@tomorrow.io.
